SPECIFICATIONS:
Software: Cisco Unified Wireless Network Software Release 5.2 or later
Cisco IOS® Software Release 12.4(21a)JA
802.11n Capabilities: 2×3 multiple-input multiple-output (MIMO) with two spatial streams
Maximal ratio combining (MRC)
Legacy beamforming (hardware supports this capability; not yet enabled in software)
20- and 40-MHz channels
PHY data rates up to 300 Mbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS) (Bin 5)
Cyclic shift diversity (CSD) support
Maximum Number of NonOverlapping Channels
2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
5 GHz
● 802.11a:
◦ 20 MHz: 21
● 802.11n:
◦ 20 MHz: 21
◦ 40 MHz: 9
Note: This varies by regulatory domain.
Integrated Antenna ● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360°
● 5 GHz, Gain 3 dBi, horizontal beamwidth 360°

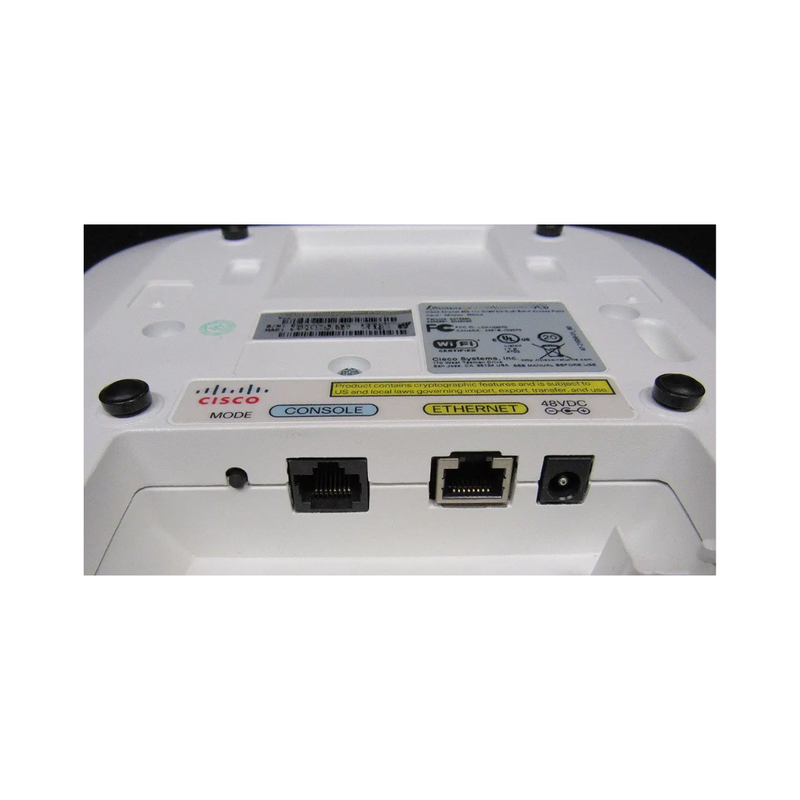

Interfaces
● 10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ45)
Indicators
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Environmental
● Nonoperating (storage) temperature: -22 to 185°F (-30 to 85°C)
● Operating temperature: 32 to 104°F (0 to 40°C)
● Operating humidity: 10 to 90% percent (non-condensing)
System Memory
● 128 MB DRAM
● 32 MB flash
Input Power Requirements
● AP1140: 44 to 57 VDC
● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60Hz
Powering Options
● 802.3af Ethernet Switch
● Cisco AP1140 Power Injectors (AIR-PWRINJ4=)
● Cisco AP1140 Local Power Supply (AIR-PWR-B=)
Power Draw
● AP1140: 12.95 W
Note: When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W.
CONDITION
Used / Second-Hand
WARRANTY
Sold as tested & working with a 7-day satisfaction gaurantee, no further warranty provided.
PLEASE NOTE
This product has undergone testing to ensure that it is in a perfect working condition. Tested and working means that there is no further warranty provided and is meant for trade clients whom understand the risk in buying secondhand items without a warranty.
Second-hand Product Notice:
This product has been Second-hand and may not be in its original packaging.
This product may or may not come with original parts and accessories
There may be minor signs of wear and tear.
Images are for illustrative purpose only and may differ from the actual product.
Photos of actual product can be requested.
